Need help about wiring

[KAZ]

Hello.
I am new here.

I bought the EMU BLACK.

I wanted to connect it to a 12V power source to check that it worked before installing it in my car.

However, it didn’t work. I couldn’t connect it using the PC software.

I connected 12V to pin 13 and ground to pin 28.

I tried connecting it to my PC via USB, but it didn’t connect. Is there something I’m doing wrong?

Do all grounds, including the power ground, have to be connected to ground?

Thank you.

[michal.kowalski]

The minimal wiring configuration is described in the Hardware Manual (page 7):

You lack the +12V Switched connection.

Link to manual: https://www.ecumaster.com/files/EMU_BLACK/EMU_BLACK_manual.pdf

[KAZ]

Thank you sir.

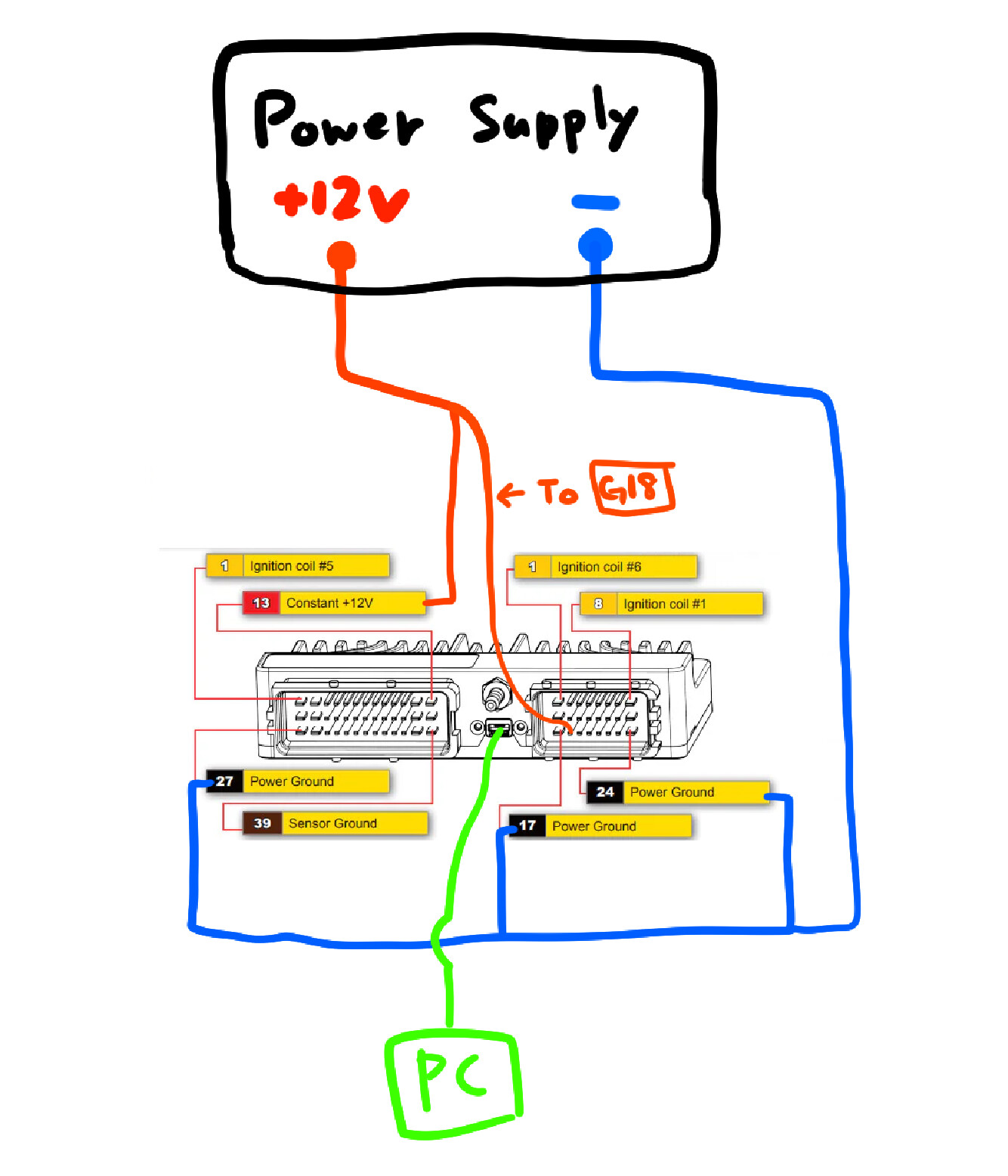

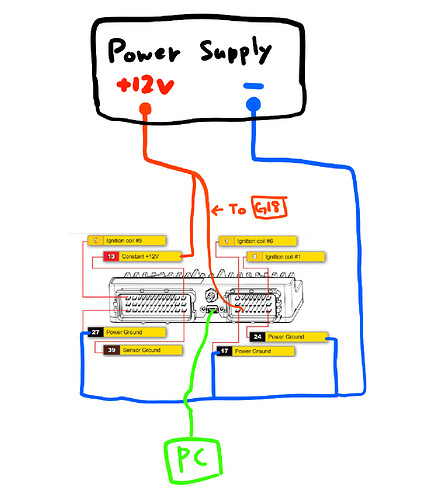

Is this correct ?

[derUltraTT]

Yes this is correct and should work like that.
